FULLY ENCLOSABLE TENTS

4x4 (Full Tent) 5x5 (Full Tent)
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 75kg 115kg
Tube frame pressure 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Doors 4 4
Netted Windows 8 8
Storm covers over Doors/windows Yes Yes
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Cover and storm covers PVC coated Polyester fabric 400 gr/sqm PVC coated Polyester fabric 400 gr/sqm
Groundsheet PVC coated Polyester fabric 600 gr/sqm PVC coated Polyester fabric 600 gr/sqm
Netting over windows PVC coated Polyester netting PVC coated Polyester netting
Inflatable tubing (Inflatable boat fabric) PVC coated Polyester fabric 1000 grm/sqm PVC coated Polyester fabric 1000 grm/sqm

GAZEBO-STYLE TENTS

4x4 (Gazebo) 5x5 (Gazebo)
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 55kg 80kg
Tube frame pressure 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Groundsheet PVC fabric 600 gr/sqm PVC fabric 600 gr/sqm
Inflatable tubing(boat fabric) PVC fabric 1000 grm/sqm PVC fabric 1000 grm/sqm

CUSTOMISATIONS

ARK can provide custom branding and labelling
Additional securing points can be added.

4x4 5x5
Floor dimensions 4m x 4m 5m x 5m
Height 2.8m 3.5m
Weight 75kg 115kg
Tube frame 0.29 bar 0.29 bar
Inflation/deflation valves 22mm 1 1
Pressure safety valves Optional Optional
Doors 4 4
Netted Windows 8 8
Storm covers over Doors/windows Yes Yes
Packed dimension 1,3m x 0,6m x 0,6m 1,5m x 0,7m x 0,7m
Fabric
Cover and storm covers PVC coated Polyester fabric 400 gr/sqm PVC coated Polyester fabric 400 gr/sqm
Groundsheet PVC coated Polyester fabric 600 gr/sqm PVC coated Polyester fabric 600 gr/sqm
Netting over windows PVC coated Polyester netting PVC coated Polyester netting
Inflatable tubing(Inflatable boat fabric) PVC coated Polyester fabric 1000 grm/sqm PVC coated Polyester fabric 1000 grm/sqm

ALLIGATOR AL. SERIES

SERIES

Alligator AL 320 (3.2m High Volume Whitewater inflatable kayak)
Alligator AL 420 (4.2m High Volume 2 person inflatable kayak)

APPLICATIONS

Remote destination expedition tripping for expert paddlers. Designed for big paddlers and bigger water.

DESIGN PHILOSOPHY

Following on from the huge success of the Croc we have reduced the tube size and set up the Alligators as Kayaks. The smaller tubes allow the paddler to sit inside the boat kayak fashion as opposed the Croc which is a sit on top. The increase kick and tapered bows make the Alligator series very forgiving while at the same time adding to the performance and speed.The high volume I beam floors more than compensate for the smaller tube size and the Alligator drains quickly in rapids even with larger payloads.

The ALLIGATOR 320 single person Kayak

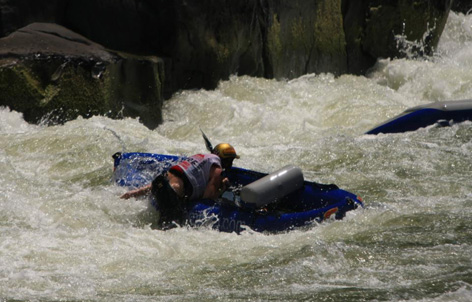

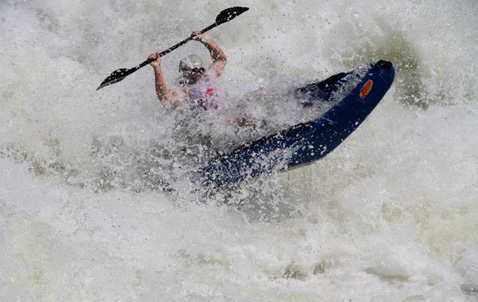

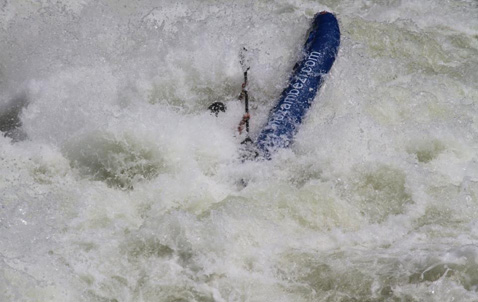

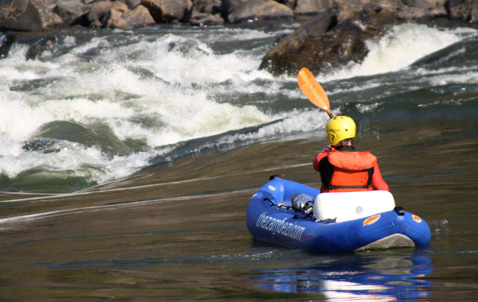

With a larger tube diameter and a low seat position, the Alligator is a river runner designed to be stable and forgiving in whitewater. The big tube and the added buoyancy in the floor, make this the choice for carrying loads in bigger volume rivers. The extra kick in the bow make this an extremely forgiving ride. The Alligators suit expert paddlers looking for extra space as well as knocking a grade of any river for the novice paddler who will enjoy the extra stabilty in rapids.

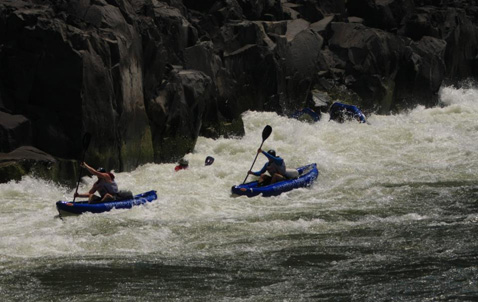

The fully adjustable thigh-brace system allows the paddler to be at one with the boat. If you do find yourself in a tricky situation, exit from the thigh-brace is quickly accomplished in a single leg- straightening action. The combination of self bailing drain holes and high volume inflatable floor quickly dumps the water. Takes a grade of any whitewater, easily handled by a novice. Often used as support and rescue boats on rafting expeditions.This model is currently employed commercially to run the Zambezi. A more exciting descent is hard to find. The combination of self bailing drain holes and high volume inflatable floor quickly dumps the water. Takes a grade of any whitewater, easily handled by a novice.

The ALLIGATOR 420

The Alligator 420, essentially the two person version of the Alligator also handles the whitewater with ease whilst still being a fast flat water boat.The two person Alligator is a great day ripping boat if you are looking for more performance and a more exciting ride than the Croc, while at the same time being way more stable than the Kayark 420. The Alligator 420 can be configured for a two or one paddlers, as a solo rig this is a remarkable expedition kayak capable of carrying as much as anyone would need for a 10 day wilderness trip. The Alligator 420 folds into an 18-kg bundle! Despite this amazing attribute, it remains more than capable of extended expedition tripping.

SPECIFICATIONS

STANDARD FEATURES

  • High volume quick draining inflatable floor
  • Adjustable foam rubber seat OR Inflatable Back rest seat
  • Quick-release thigh-brace system
  • Stainless steel D-rings for securing down rig.
  • Grab ropes

DIMENSIONS AND TECHNICAL SPECIFICATIONS

Series AL 320 AL 420
Packed Size and Weight 45 x 30 x 30cm (18kg) 75 x 50 x 50cm (24kg)
Length 3.20m 4.20m
Width 0.90m 0.90m
Tube Diameter 280mm 280mm
Air Chambers 3 3
Capacity 1 Person 2 Persons

COLOURS

Available in any combination of the colour options listed below:

Tube Trim
Red -
Yellow -
Grey -
Royal Blue -

CUSTOMISATIONS

  • Branding - full colour logos or standard lettering/numbering - you supply logos and artwork or let us do it for you
  • Additional D-rings for securing equipment
  • Material - ARK can supply rafts in different fabric specifications for particular applications (e.g. Polyurethane, and Poly/PVC blends)
  • Colours other than those in the colour table above are possible dependent on availability

If this is the boat you're after contact us.
